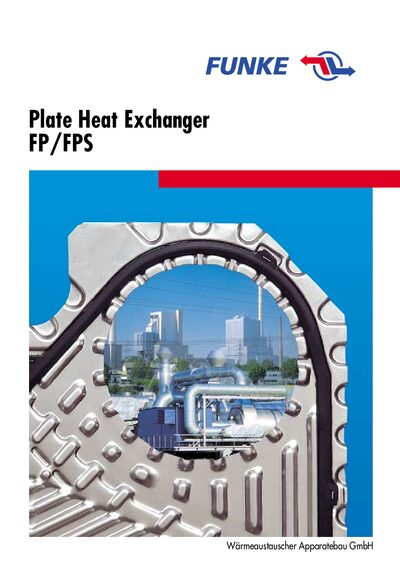

The FUNKE FP/FPS plate heat exchanger data sheet details design, applications, dimensions, performance and certifications.
The FUNKE FP/FPS plate heat exchanger is a bolted, high‑performance unit used in rolling mills, power plants, food processing and other industrial applications. It can be configured with a variable number of embossed plates to meet different thermal requirements, and computer programs are available to optimise the design.
The exchanger consists of a fixed plate, a pressure plate, a plate package with embossed heat‑transfer plates and gaskets, and a clamping system. Standard plate materials are DIN 1.4301/AISI 304 and 1.4401/AISI 316, with gasket options such as NBR, EPDM and VITON. The product complies with ISO 9001 and numerous international standards (ASME, API, etc.) and is rated for up to 25 bar and 200 °C. This manual is written in German.
| Maximum design pressure | 25 bar |
|---|---|
| Maximum design temperature | 200 °C |
| Standard plate material | DIN 1.4301/AISI 304, 1.4401/AISI 316 |
| Gasket materials | NBR, EPDM, VITON (others on request) |
| Plate size capability | up to 0.3 m² |
| Certification | ISO 9001, ASME U‑Stamp, API, etc. |
It is rated for a maximum design pressure of 25 bar.
Standard gasket materials are NBR, EPDM and VITON, with other options available on request.
The product is certified to ISO 9001 and holds approvals such as ASME U‑Stamp, API, and other international standards.
The plates are supplied in DIN 1.4301/AISI 304 and 1.4401/AISI 316 grades.
