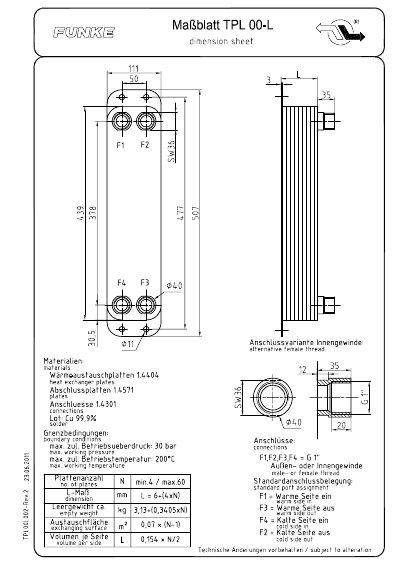

This document provides technical specifications for the Funke TPL 00-L heat exchanger plate unit. It lists the specific stainless steel grades used for the heat exchanger plates, end plates, and connections, as well as the solder material.
The datasheet defines the operational boundary conditions, including a maximum working pressure of 30 bar and a maximum working temperature of 200°C. It also provides formulas to calculate the number of plates (N), total dimension L, weight, exchanging surface area, and volume per side based on N.
| Heat exchanger plates material | 1.4404 |
|---|---|
| End plates material | 1.4571 |
| Connections material | 1.4301 |
| Solder material | Cu 99,9% |
| Max. working pressure | 30 bar |
| Max. working temperature | 200°C |
The maximum working pressure is 30 bar.
The maximum working temperature is 200°C.
