The document is about the instruction manual of Mabblatt TPL OO-L. It mainly introduces the connection method, materials, maximum working pressure, maximum working temperature, number of plates, dimensions, weight, etc. of the product.

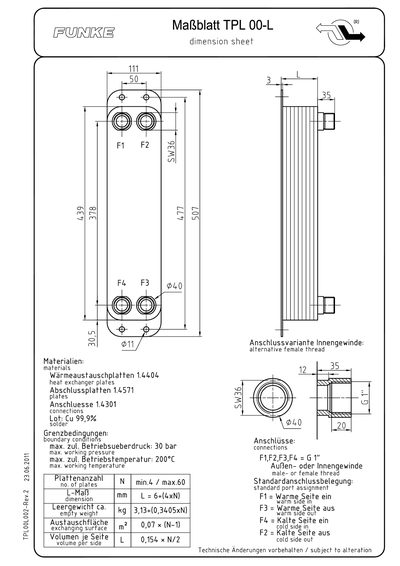

This document is a technical datasheet (Mafgblatt) for the Funke TPL 00-L model. It specifies that the unit consists of heat exchanger plates made of material 1.4404, with end plates of 1.4571 and connections of 1.4301. This manual is written in German.
| Max. working pressure | 30 bar |
|---|---|
| Max. working temperature | 200°C |
| Heat exchanger plates material | 1.4404 |
| End plates material | 1.4571 |
| Connections material | 1.4301 |
| Solder material | Cu 99,9% |
The maximum allowable operating pressure is 30 bar.
The maximum allowable operating temperature is 200°C.
The minimum number of plates is 4.
