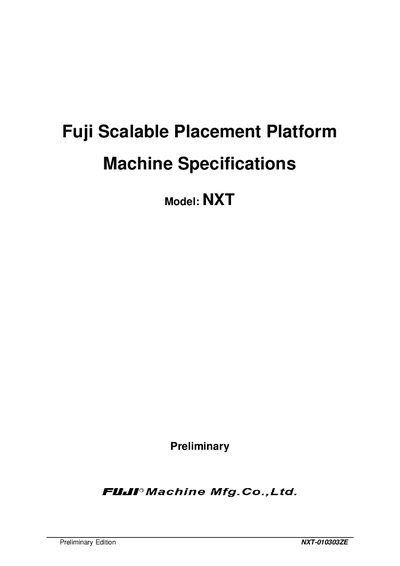

Technical specifications for the Fuji NXT-010303ZE Scalable Placement Platform Machine, including power, dimensions, accuracy and options.
The Fuji NXT-010303ZE Scalable Placement Platform Machine is a modular SMT placement system offering flexible module configurations, high‑mix capability and a compact footprint. It features an XY‑robot, interchangeable placing heads, dual conveyor system and integrated vision for parts and fiducial marks.
The document provides detailed machine data, operating environment requirements, module and head specifications, control system features, optional equipment and dimensional drawings, enabling users to assess suitability for their production lines.
| Power voltage | 200 ~ 230V AC (±10%) three‑phase |
|---|---|
| Frequency | 50/60 Hz |
| Air pressure | 0.5 MPa (ANR) |
| Weight (8‑module type) | 2800 kg |
| Placing accuracy (chip) | ±0.04 mm (3σ), ±0.08 mm (6σ) |
| Placing reliability | 99.99 % |
| Maximum part height | 6.5 mm (25.4 mm for H01 head) |
| Warranty period (equipment) | 6000 working hours or 2 years |
| Maximum PCB size | 510 mm × 534 mm, thickness 0.4–6 mm |
Chip placing accuracy is ±0.04 mm (3σ) and ±0.08 mm (6σ).
The equipment warranty is 6000 working hours or 2 years, whichever occurs first.
The machine can handle PCBs up to 510 mm × 534 mm with thickness from 0.4 mm to 6 mm.
