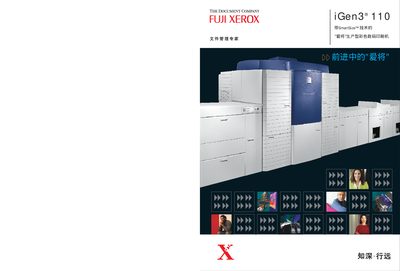

The manual provides specifications of the Fuji Xerox iGen3 110 production color digital press, covering printing speed, paper formats, feed capacity…
The iGen3 110 is a high‑productivity production color digital press offering up to 6,600 full‑color A4 sheets per hour (110 per minute) and 1,500 A3 double‑sided sheets per hour. It supports a wide range of paper sizes from 178 × 178 mm up to 364 × 521 mm (optional 364 × 571 mm) and paper weights from 60 g/m² (uncoated) to 350 g/m² (coated). The machine includes up to six feed modules, twelve paper trays, and a roll‑feed DocuSheeter capable of handling up to 50,000 pages per roll.
Optional features include SmartPress imaging technology, various color servers (Xerox DocuSP, Creo Spire, EFI Fiery), finishing options such as booklet makers and stackers, and an environmental control unit with built‑in air conditioning for optimal temperature and humidity. Service support and spare‑part information are provided for reliable operation. This manual is written in Chinese.
| Printing speed (A4) | 6,600 sheets per hour (110 per minute) |
|---|---|
| Printing speed (A3 double‑sided) | 1,500 sheets per hour |
| Image resolution | 600 × 4800 dpi |
| Maximum paper size | 364 × 521 mm |
| Minimum paper size | 178 × 178 mm |
| Coated paper weight range | 90–350 g/m² |
| Uncoated paper weight range | 60–350 g/m² |
| Maximum paper trays | 12 trays |
| Maximum feed modules | 6 modules |
| Roll‑feed capacity per roll | Up to 50,000 pages |
| Machine dimensions (W × D × H) | 7,210 × 1,829 × 2,438 mm |
| Machine weight | 3,580 kg |
The iGen3 110 can print up to 6,600 full‑color A4 sheets per hour, which is 110 sheets per minute.
The press can be equipped with up to twelve paper trays across its feed modules.
Yes, the optional DocuSheeter module can handle rolls that provide up to 50,000 pages of paper.
