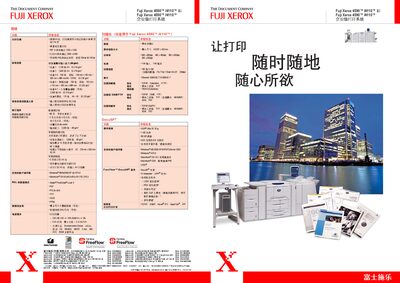

The Fuji Xerox 4590/4110 Enterprise Printing System User Manual provides specifications, setup, operation, and maintenance details for the high‑speed…
The manual describes the Fuji Xerox 4590/4110 enterprise printing system, a high‑speed multifunction device with printing speeds of up to 90 ppm (4590) or 110 ppm (4110), resolutions up to 2400 × 2400 dpi, and extensive paper‑handling options including multiple trays with capacities of up to 1,600 sheets. It also covers data‑security features such as optional SSL/TLS encryption and power specifications (220‑240 VAC, 3.3‑3.6 KVA).
Additional sections detail the integrated scanner (up to 100 ppm, 600 dpi max), supported operating systems (Windows, Mac OS, UNIX), network connectivity (Ethernet 100BASE‑TX/10BASE‑TX, TCP/IP, SNMP), optional accessories (binding units, folding devices), and workflow tools from the FreeFlow™ DocuSP suite for job management, security, and remote service. This manual is written in Chinese.
| Printing speed | 90 ppm (model 4590) / 110 ppm (model 4110) |
|---|---|
| Print resolution | Up to 2400 × 2400 dpi |
| Scanner speed | Up to 100 pages per minute |
| Power consumption | Maximum 3.3‑3.6 KVA |
| Supported operating systems | Windows 98/M/2000/XP, NT4.0, Mac OS 8.0x‑10.3, UNIX |
| Network interface | Ethernet 100BASE‑TX/10BASE‑TX |
The 4590 model prints up to 90 pages per minute, while the 4110 model prints up to 110 pages per minute.
Optional SSL/TLS encryption and strong password protection are provided for secure data transfer.
The scanner supports up to 600 dpi resolution for black‑and‑white scans.
