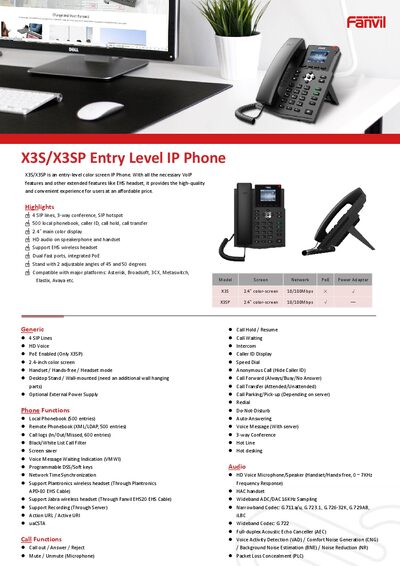

The Fanvil X3S/X3SP entry-level IP phone specification sheet details its features, network capabilities, and physical dimensions.
The Fanvil X3S/X3SP is an entry‑level color‑screen IP phone offering a full set of VoIP features, including 4 SIP lines, HD voice, and support for wireless headsets. It can be used on a desktop stand or wall‑mounted with optional accessories.
Key specifications include a 2.4‑inch (320×240) color display, dual Ethernet ports with PoE (X3SP only), a wide range of supported codecs, and robust network security features such as 802.1x, VPN, and VLAN. Physical dimensions, power consumption, and environmental ratings are also provided for installation planning.
| Screen | 2.4‑inch (320×240) color |
|---|---|
| SIP Lines | 4 |
| Power Consumption | Idle 0.9–1.65 W, Peak 1.8–2.95 W |
| Network Interface | 10/100 Mbps Ethernet, dual bridged port |
| PoE Support | Enabled on X3SP model only |
| Operating Temperature | 0 °C to 45 °C |
It supports up to 4 SIP lines.
Yes, PoE is enabled on the X3SP model only.
The desktop stand dimensions are 169 × 186.3 × 174.5 mm (Angle 1) and 169 × 177.6 × 183.7 mm (Angle 2).
Supported protocols include SIP 2.0 over UDP/TCP/TLS, RTP/RTCP/SRTP, STUN, DHCP, LLDP, PPPoE, 802.1x, L2TP, OpenVPN, SNTP, FTP/TFTP, HTTP/HTTPS, and TR‑069.
