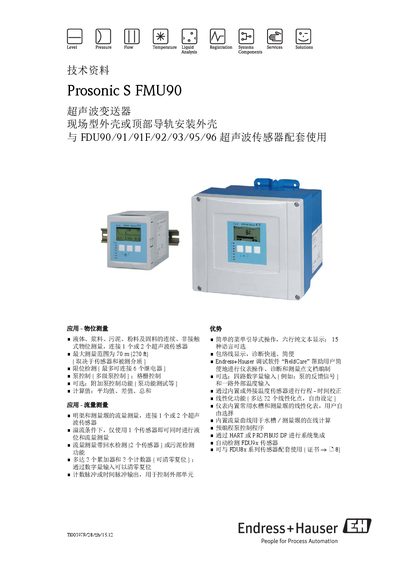

Technical data sheet for the Endress+Hauser Prosonic S FMU90 ultrasonic transmitter, covering level and flow measurement applications.
The Endress+Hauser Prosonic S FMU90 is an ultrasonic transmitter designed for non-contact continuous measurement of level in liquids, slurries, sludge, powders, and solids. It supports the connection of one or two FDU9x series sensors and offers features such as limit detection, pump control (up to 6 pumps), and flow calculation. This manual is written in Chinese.
| Maximum Measurement Range (Liquid) | 70 m (230 ft) |
|---|---|
| Number of Sensors Supported | 1 or 2 sensors |
| Relay Outputs for Limit Detection | Up to 6 relays |
| Pump Control Capability | Multi-stage pump control |
| Linearization Points | Up to 32 points |
The FMU90 is designed to work with FDU90/91/91F/92/93/95/96 sensors and can also be used with FDU8x series sensors.
Yes, it supports flow measurement for open channels and weirs using one or two ultrasonic sensors.
The device supports HART and PROFIBUS DP for system integration.
