Installation and wiring instructions for Elstein ceramic infrared radiator systems including BSH panels, EBF-R elements, and FIS focus radiators.

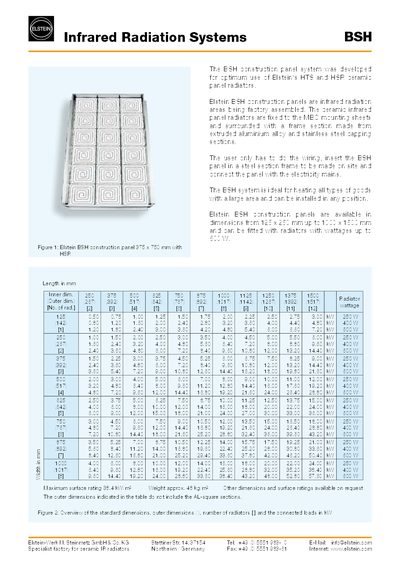

This document provides technical specifications and installation instructions for Elstein's range of ceramic infrared radiation systems. It details the assembly and mounting procedures for the BSH construction panel system, which is designed for heating large areas using HTS and HSR radiators. The guide also covers the EBF-R construction elements equipped with universal power rails for various heater types.
Additionally, the manual describes the Elstein focus infrared radiators (FIS), which utilize an aluminium reflector to concentrate radiation on small or selective areas. It includes information on mounting dimensions, wiring requirements, and safety considerations for all described systems.
| Maximum surface rating (BSH) | 38.4 kW/m² |
|---|---|
| Radiator wattage options (BSH) | 250 W, 400 W and 600 W |
| Maximum radiator power level (EBF-R) | 1200 W |
| Standard power (FIS) | 250 W |
| Operating voltage (FIS) | 230 V |
It does not include a rail if a radiator with dimensions 245 x 60 mm is mounted.
Nickel wire (2.5 mm²) and thermo line (1 mm²) are supplied.
Yes, it is possible to combine different radiator designs and wattages of the same types.
