Elstein FSR series is a type of ceramic infrared radiator designed for operating temperatures up to 720°C. Surface powers of up to 64 kW/m² can be installed. FSR series radiators are manufactured using a ceramic full-casting process and are characterized by their concave design. FSR radiators are characterized by their universal applicability and are suitable for building radiation surfaces with any geometry. They are available in three configurations and cover a power range from 60 W to 1000 W.

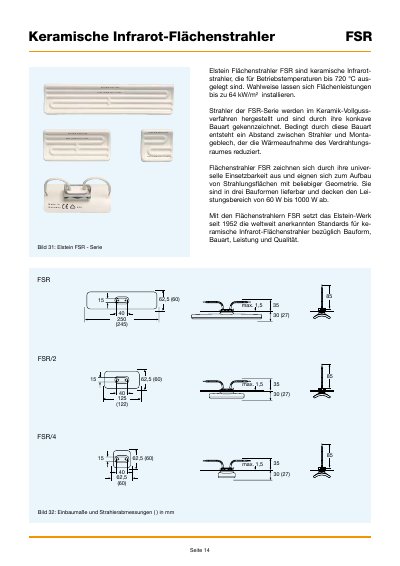

The Elstein FSR series consists of ceramic infrared heaters designed for operating temperatures up to 720 °C. These heaters are manufactured using a ceramic full-casting process and are characterized by their concave design, which reduces heat absorption in the wiring area. They are available in three versions covering a power range from 60 W to 1000 W. This manual is written in German.
| Maximum Operating Temperature | 720 °C |
|---|---|
| Wavelength Range | 2 - 10 µm |
| Operating Voltage | 230 V |
| Connection Length | 85 mm |
| Mounting Bracket Length | 100 mm |
| Maximum Allowable Temperature | 750 °C |
The heaters are designed for operating temperatures up to 720 °C.
Power is adjustable using thermocouple heaters in combination with temperature controllers TRD 1, thyristor switching units TSE, and other accessories.
