Elstein HTS high temperature ceramic radiation heaters are used for applications up to 860°C. They are manufactured using ceramic full casting technology and filled with insulation material to improve the transfer of heat to the heated object. The rated power range is from 60 to 1000 watts.

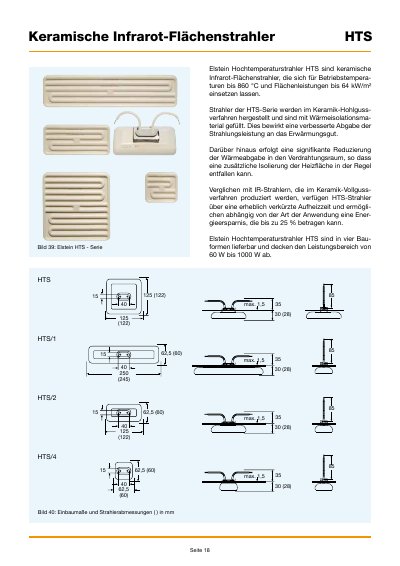

The document describes the Elstein HTS series of high-temperature ceramic infrared flat radiators. These devices are manufactured using a ceramic hollow casting process filled with thermal insulation material to improve radiation efficiency and reduce heat loss in wiring areas.
Key features include significantly shorter heating times compared to full-casting ceramic IR emitters, potentially saving up to 25% energy. The series is available in four models (HTS/1, HTS/2, HTSV/4) covering a power range from 60 W to 1000 W and operating temperatures up to 860 °C. This manual is written in German.
| Operating Temperature Range | up to 860 °C |
|---|---|
| Maximum Surface Power Density | 64 kW/m² |
| Power Range | 60 W to 1000 W |
| Wavelength Range | 2 - 10 µm |
| Operating Voltage | 230 V |
The radiators can be used for operating temperatures up to 860 °C.
Depending on the application, energy savings of up to 25% can be achieved.
The document provides heating curves in minutes (0 to 10 min) but does not state a single fixed duration.
