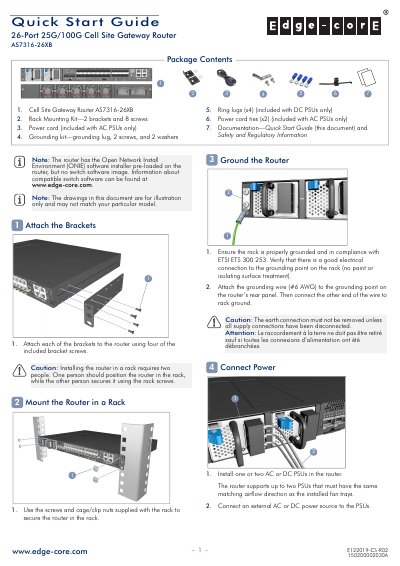

This guide provides installation, rack mounting, grounding, and initial configuration instructions for the Edge-Core AS7316-26XB 26-port router.
The document serves as a quick start guide for the Edge-Core AS7316-26XB Cell Site Gateway Router. It details the physical installation process, including attaching brackets, mounting the unit in a rack, and proper grounding procedures to meet ETSI standards.
The guide covers power connection options (AC or DC), verifying system operation via LEDs, and performing an initial boot using the pre-loaded Open Network Install Environment (ONIE). It also provides instructions for connecting network cables, including SFP28/QSFP28 transceivers, timing ports, and GPS antennas. This manual is written in Chinese.
| Chassis Size (WxDxH) | 438.4 x 299.8 x 43.25 mm |
|---|---|
| Weight | 6.15 kg (with two installed PSUs) |
| Operating Temperature | 0° C to 45° C |
| Storage Temperature | -40° C to 70° C |
| Max Power Consumption | 265 Watts |
The Open Network Install Environment (ONIE) software installer is pre-loaded, but no switch software image is included.
The router supports up to two PSUs that must have the same matching airflow direction as the installed fan trays.
A 100-ohm Category 5, 5e or better twisted-pair cable is required.
