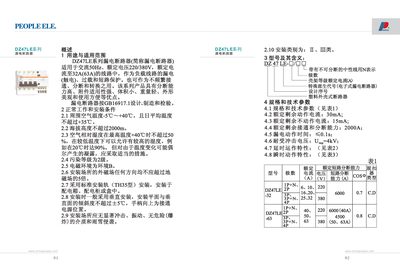

The DZ47LE residual current circuit breaker manual provides specifications, installation, operation, and maintenance instructions.
The DZ47LE series residual current circuit breakers are designed for AC 50 Hz systems with rated voltages of 220 V or 380 V and rated currents up to 32 A (63 A). They protect circuits from leakage currents, overloads, and short‑circuits and feature compact size, light weight, and easy operation.
The manual covers technical parameters, installation on a TH35 standard mounting rail, wiring diagrams, test procedures, safety warnings, and warranty information. It also explains how to perform periodic leakage‑current tests and how to maintain the device for reliable performance. This manual is written in Chinese.
| Rated Voltage | 220 V / 380 V AC |
|---|---|
| Rated Current | 32 A (63 A) |
| Rated Residual Operating Current | 30 mA |
| Rated Residual Non‑Operating Current | 15 mA |
| Rated Breaking Capacity | 2000 A |
| Leakage Action Time | ≤0.1 s |
| Withstand Voltage | 4 kV |
| Operating Temperature Range | -5 °C to +40 °C |
| Maximum Relative Humidity at +40 °C | 50 % |
| Installation Category | II, III |
The rated residual operating current is 30 mA.
After about one month of operation, press the test button in the closed (ON) position to verify protection; repeat each time you test.
The breaker must be installed on a standard TH35 type mounting rail.
