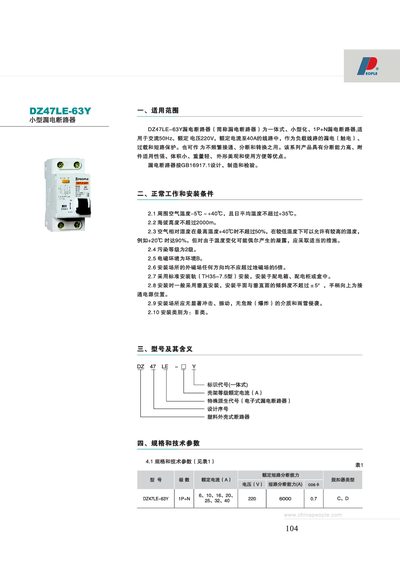

This manual describes the DZ47LE-63Y small leakage breaker, covering its rated current, voltage, residual operating currents, and short‑circuit breaking capacity. It also details normal operating conditions, safety requirements, and the device's working principle.
Installation instructions, dimensional data, and wiring diagrams are included, along with tables of technical parameters and performance characteristics for different current ratings. This manual is written in Chinese.
| Rated current (A) | 25, 32, 40 |
|---|---|
| Rated voltage (V) | 220 |
| Number of poles | 1P+N |
| Short‑circuit breaking capacity (A) | 2000 |
| Rated residual operating current (mA) | 30 |
| Rated residual non‑operating current (mA) | 15 |
| Operating temperature range (°C) | -5 to +40 |
| Maximum altitude (m) | 2000 |
The rated residual operating current is 30 mA.
It can break short‑circuit currents up to 2000 A.
The device operates between –5 °C and +40 °C.
Installation is permitted up to 2000 m above sea level.
