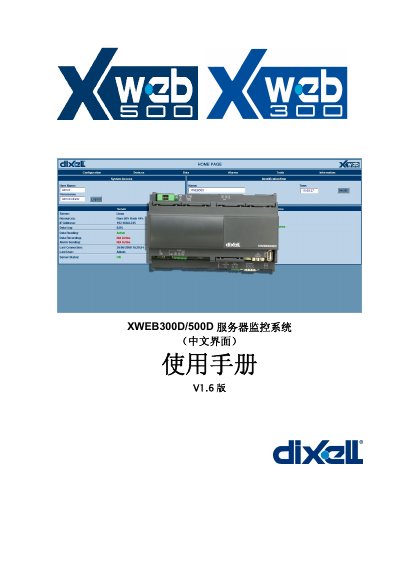

DIXELL XWEB300D/500D Server Monitoring System User Manual

About this manual

The DIXELL XWEB300D/500D is a network-based server monitoring system that utilizes web technology to display information. It runs on a Linux operating system and supports RS485 communication protocols (Modbus-Rtu) to read, record, and detect data from connected controllers.

The manual details the installation process, including hardware connections via Ethernet or Modem, and software configuration for network settings, email alerts, SMS notifications, and printer setup. It also explains how to use the system interface for monitoring active alarms, configuring devices, viewing historical data graphs, and managing user permissions. This manual is written in Chinese.

What's inside

• Overview
• Installation
• Configuration & Access
• System Usage
• Active Monitoring
• Data Menu
• Alarms
• Permissions

Frequently asked questions

What operating system runs the XWEB300D/500D monitoring system?

The product uses a Linux operating system to ensure efficient and secure operation.

Which communication protocol does the server use for RS485 connected controllers?

The system uses the Modbus-Rtu communication protocol for data exchange with controllers.
