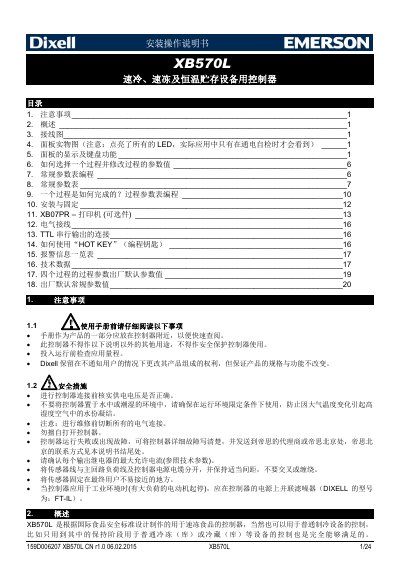

The XB570L controller manual explains installation, wiring, operation, parameter programming and troubleshooting for fast‑cool, fast‑freeze and…
This manual provides detailed instructions for the Dixell XB570L controller used in rapid cooling, fast‑freeze and temperature‑hold storage equipment. It covers safety precautions, wiring diagrams, panel functions, process selection, parameter programming, installation, and optional printer configuration.
The document also includes alarm information, technical data tables, default parameter values for the four freezing processes, and guidance on manual defrost, lock/unlock functions, and auxiliary output control. Contact information for Emerson Climate (Dixell) China is provided at the end. This manual is written in Chinese.
| 温差 (Hy) | 0.1~12.0 ℃ |
|---|---|
| AC 防频繁启动延时 | 0~30 分钟 |
| PAU 暂停时间长度 | 0~60 分钟 |
| PFt 短时断电允许时间 | 0~250 分钟 |
Press and release the (2) “process start/stop” key; the yellow LED will light to indicate the process has started.
Hold the (2) key until the yellow LED turns off; the process will stop.
When the evaporator probe temperature is below the defrost termination temperature and MdF≠0, hold the up key (1) for a few seconds to start manual defrost.
