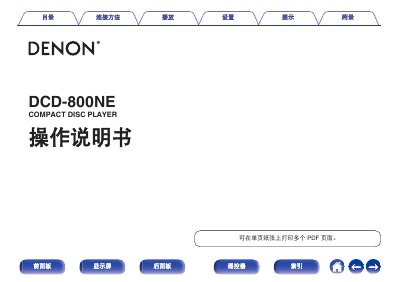

The Denon DCD-800NE CD player manual provides connection, playback, settings, and troubleshooting instructions.
This manual explains how to connect the DCD-800NE to amplifiers, digital audio devices, USB storage, and timer accessories. It also covers basic operation such as power on/off, media selection, and programming playback.
Additional sections describe the front panel controls, display indicators, rear panel connectors, remote control usage, and detailed specifications of the optical system, power consumption, and supported audio file formats. This manual is written in Japanese.
| Laser wavelength | 780 nm |
|---|---|
| Signal type | 16‑bit linear PCM |
| Sampling frequency | 44.1 kHz |
| Digital output (coaxial) | 0.5 V p‑p / 75 Ω |
| Digital input (USB) | USB‑type A, USB 2.0 high‑speed |
| Operating temperature | +5 °C – +35 °C |
| Power consumption (standby) | 0.2 W |
| Dimensions (W × H × D) | 60 mm × 45 mm × 45 mm |
| Weight | 4.5 kg |
Connect the USB storage device to the USB port on the rear panel.
The unit uses less than 0.2 W in standby mode.
Supported formats include MP3, WMA, WAV, MPEG‑4 AAC, FLAC, Apple Lossless, AIFF, and DSD.
