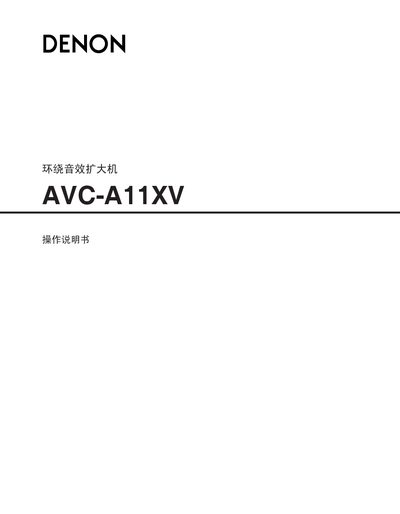

The Denon AVC-A11XV operating manual provides setup, connection, system settings, and safety instructions for the surround sound amplifier.
This manual guides users through safe handling, installation, and operation of the Denon AVC‑A11XV surround sound amplifier. It covers safety precautions, wiring diagrams, speaker placement, and detailed system configuration.
Key sections include safety warnings, installation steps, connection methods for audio/video sources, speaker system setup, system settings, remote‑control functions, troubleshooting, and full technical specifications. This manual is written in Chinese.
| Power Amplifier Rated Output (Front) | 140W+140W (8Ω, 20Hz–20kHz, 0.05% THD) |
|---|---|
| Speaker Impedance Range | 6 Ω – 16 Ω |
| Audio Input Sensitivity / Impedance | 200 mV / 47 kΩ |
| Power Consumption | 610 W |
Disconnect all cables and power plugs to avoid short circuits or damage before moving the unit.
The unit can be configured for up to 10 speakers using two surround pairs and one rear surround speaker.
Using speakers with impedance lower than 8 Ω when two surround pairs are connected may cause damage.
