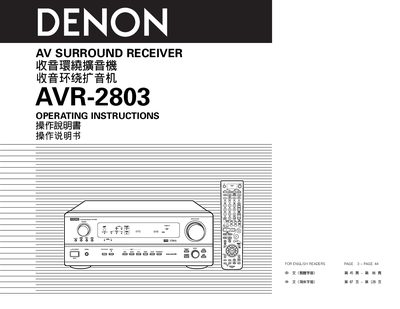

This is an instruction manual, introducing the use of AV SURROUND RECEIVER AVR-2803.
This manual introduces the Denon AVR-2803 digital surround AV receiver, covering safety precautions, installation tips, and detailed feature explanations such as Dolby Digital, DTS, and multi‑zone music playback. It guides users through proper handling, power‑on procedures, and the use of the remote control.
The document also contains extensive wiring information, including speaker connections, antenna setup, video component hookups, and zone‑2 outputs, along with recommended ventilation clearances and power‑outlet limits to ensure reliable operation.
| AC outlet capacity (Taiwan model) | 120 W |
|---|---|
| AC outlet capacity (multiple‑voltage model) | 100 W |
| Power supply (Taiwan model) | AC 120 V / 60 Hz |
| Speaker impedance range | 6 Ω – 16 Ω |
| Recommended ventilation clearance | ≥ 10 cm |
Do not open the unit or remove the cover, and have any servicing performed by qualified personnel.
Leave at least 10 cm of clearance on the top, back, and sides of the unit.
Speakers with an impedance of 6 Ω to 16 Ω can be connected for front, center, surround, and surround‑back channels.
The AC outlets can supply up to 120 W on the Taiwan model and up to 100 W on the multiple‑voltage model.
