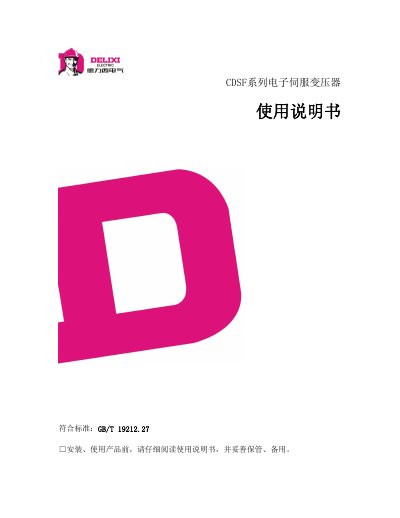

Delixi CDSF Series Electronic Servo Transformer User Manual

About this manual

This manual introduces the CDSF series electronic servo transformer, a compact power supply designed to match Chinese grid voltage with imported AC servo systems. It outlines the product’s standards, environmental limits, and key technical parameters such as input and output voltages.

Detailed sections cover wiring procedures, connection diagrams for various servo brands, fault diagnosis, safety precautions, and warranty information, helping users install and maintain the transformer safely and efficiently. This manual is written in Chinese.

What's inside

• Overview
• Usage Environment
• Model and Basic Parameters
• Product Advantages
• Applicable Servo Systems
• Wiring Instructions and Diagrams
• Fault Handling
• Usage Instructions
• Precautions
• Warranty and Manufacturer Information

Specifications

Frequently asked questions

What is the maximum operating altitude for the transformer?

The transformer should not be used at altitudes above 2000 m.

How can I verify the correct input voltage before connecting the servo driver?

Measure the voltage between L1 and L3 with a multimeter on the DCV range; it should read 190 ± 10 V.

What should I do if the transformer’s indicator light does not illuminate?

Check that the three‑phase power supply is connected to the transformer.
