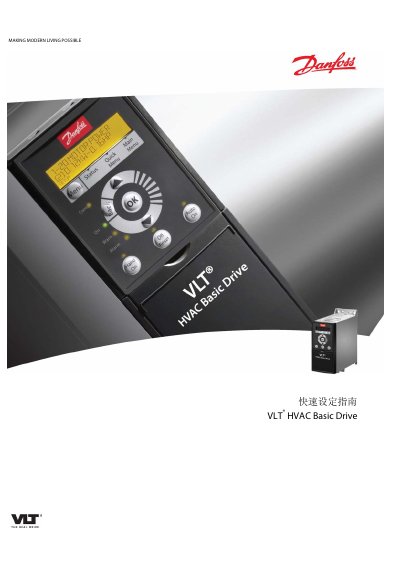

Danfoss VLT HVAC Basic Drive FC101 Quick Start Guide

This document provides a quick setup guide for the Danfoss VLT HVAC Basic Drive FC101, including wiring diagrams, LCP panel usage, parameter settings for…

Brand: Danfoss
Category: Motor
Document type: Quick Start Guide
Language: Chinese
Pages: 8
File format: PDF
File size: 750 KB
Published: 19 October, 2026
Updated: 19 October, 2026
MD5 checksum: C8D438E09A71356197318C324CC5E2F5
PDF: Danfoss VLT HVAC Basic Drive FC101 Quick Start Guide PDF

About this manual

This guide covers the basic setup and operation of the Danfoss VLT HVAC Basic Drive FC101. It details the terminal connections for power, motor, and control signals, as well as the functions of the Local Control Panel (LCP) for manual and automatic operation. This manual is written in Chinese.

What's inside

Wiring Diagram
LCP Operation Panel
Parameter Settings (Open Loop)
Parameter Settings (Closed Loop)
Fault Codes

Specifications

Motor Power Range	0.12-110kW / 0.16-150Hp
Motor Voltage Range	50.0 - 1000.0V
Motor Frequency Range	20.0 - 400.0Hz
Motor Current Range	0.01-10000.0A
Motor Normal Speed Range	100.0 - 9999.0RPM

Frequently asked questions

What is the function of Terminal 12?

Terminal 12 provides 24VDC power for digital inputs.

What is the function of terminal 12 on the FC101 drive?

Terminal 12 provides 24VDC power for digital inputs.

What is the default setting for parameter 3-41 Ramp 1 Ramp Up Time?

The default setting is 3 seconds.

What is the range for parameter 1-20 Motor Power?

The range is 0.12-110kW or 0.16-150Hp.

Download PDF (750 KB)
