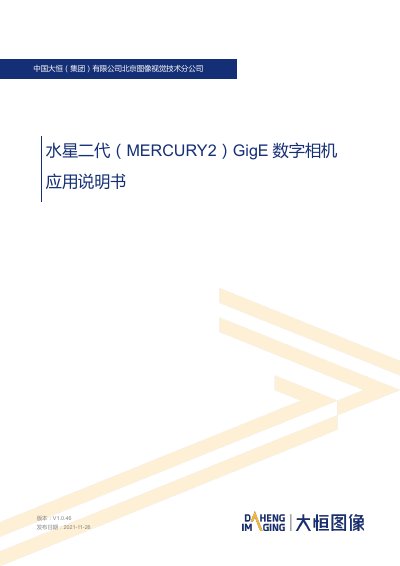

This manual covers the application of Daheng Imaging's MERCURY2 GigE digital cameras, including installation, performance parameters, and software usage.
This document serves as an application guide for the Daheng Imaging MERCURY2 (MERCURY2) GigE interface digital camera series. It details the features of the Standard version (MER2-G(-P) series) and Pro version (ME2P-G-P series), which utilize the GigE standard interface for easy installation in industrial, medical, scientific, educational, and security applications.
The guide provides comprehensive instructions on system requirements, driver installation, IP configuration, and camera control. It includes detailed performance parameters for various models within the MER2 and ME2P series, such as resolution, sensor type, frame rate, and spectral response curves. This manual is written in Chinese.
| Sensor Type | Sony IMX287, Global shutter CMOS |
|---|---|
| Optical Size | 1/2.9 inch |
| Pixel Size | 6.9μm × 6.9μm |
| Frame Rate | 302.3fps @ 720 × 540 |
| Modulation Accuracy | 12bit |
| Shutter Time | 20μs ~ 1s |
| Gain Range | 0dB ~ 24dB |
| Operating Temperature | 0℃ ~ 45℃ |
The Pro version supports PoE (IEEE802.3af) or a 12VDC to 24VDC power source.
The camera supports Windows XP through Windows 10, as well as Ubuntu 14.04 and 16.04 Linux operating systems.
The camera achieves a frame rate of 302.3fps when operating at a resolution of 720 × 540.
The camera is designed to operate within a temperature range of 0℃ to 45℃.
