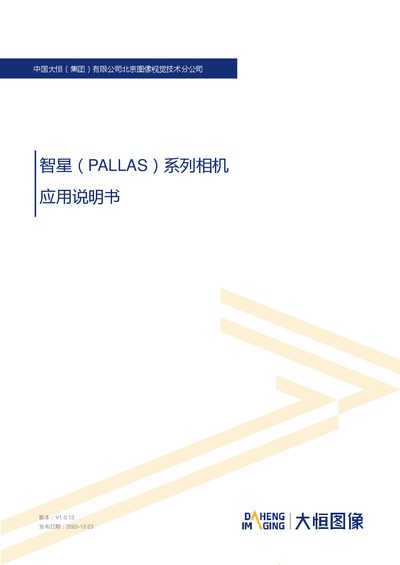

This manual details the application, specifications, and software usage for the Daheng Imaging PALLAS series of intelligent digital cameras.
This manual provides a comprehensive guide for the Daheng Imaging PALLAS series of intelligent digital cameras. It covers model definitions, functional performance lists for various models (P513, P563, P516, P504, P5200), and details on filters and lenses. The document also explains mechanical and software interfaces, electromagnetic compatibility, and environmental usage notes. This manual is written in Chinese.
| Resolution (P513) | 1280 x 960 |
|---|---|
| Sensor Type (P513) | AR0135 global shutter CMOS |
| Frame Rate (P513) | 54fps @ 1280 x 960 |
| Resolution (P563) | 3088 x 2064 |
| Sensor Type (P563) | Sony IMX178 rolling shutter CMOS |
| Frame Rate (P563) | 35fps @ 3088 x 2064 |
| Resolution (P516) | 1440 x 1080 |
| Frame Rate (P516) | 128fps @ 1440 x 1080 |
| Resolution (P504) | 720 x 540 |
| Frame Rate (P504) | 444fps @ 720 x 540 |
| Power Requirement | +12~24VDC (±10%) |
| Operating Temperature | 0℃ ~ 45℃ |
The resolution is 1280 x 960.
The frame rate is 444fps at 720 x 540 resolution.
The power requirement is +12~24VDC with a tolerance of ±10%.
The camera has entered the factory startup mode, and the user should upgrade the system.
