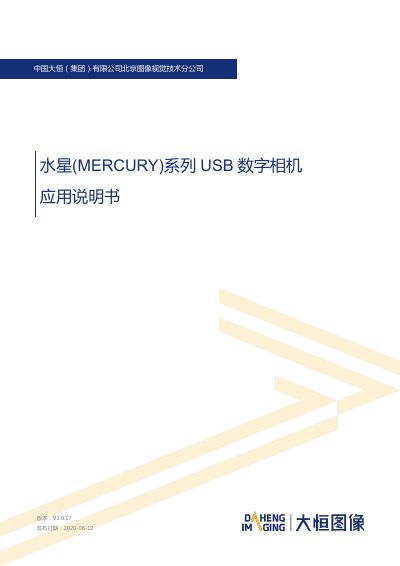

Daheng Imaging MERCURY Series USB Digital Camera Application Manual

About this manual

This document serves as an application guide for the Daheng Imaging MERCURY series of USB digital cameras. It covers various models including CMOS frame exposure, line exposure, and CCD types, detailing their specific performance specifications such as resolution, sensor type, and frame rates.

The guide provides instructions on mechanical installation, including lens selection and filter specifications. It also explains key functional features like exposure control, data formats, acquisition speed, gain adjustment, black level, white balance, and external triggering methods. This manual is written in Chinese.

What's inside

• Overview
• Product Specifications
• Product List
• Mechanical Installation
• Lens Selection
• Exposure Control
• Data Format
• Acquisition Speed
• Gain Adjustment
• External Trigger

Frequently asked questions

What is the input signal voltage range for the camera's external trigger port?

The input signal voltage must be between 6V and 24V.

What are the minimum and maximum voltage values for the camera's external trigger output port?

The VCC voltage minimum is 5V and the maximum is 24V.

What is the maximum output current for the camera's external trigger port?

The maximum output current is 50mA.
