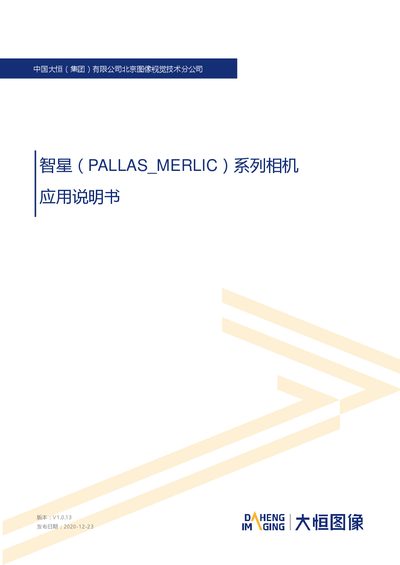

This manual details the application of Daheng Imaging's PALLAS series intelligent digital cameras, covering specifications, interfaces, and troubleshooting…
The PALLAS series from Daheng Imaging is a mature line of intelligent digital cameras designed for industrial inspection, medical, scientific research, education, and security applications. These compact cameras feature network interfaces for easy installation and use, offering high resolution, clarity, and low noise performance.
The document provides comprehensive application information including model definitions with embedded software capabilities (Halcon, MERLIC), detailed functional specifications for different resolutions and sensor types, mechanical and electrical interface descriptions, filter and lens selection guides, and troubleshooting procedures. This manual is written in Chinese.
| Resolution (PALLAS 6513M/C) | 1280 x 960 |
|---|---|
| Sensor Type (PALLAS 6513M/C) | AR0135 global shutter CMOS |
| Resolution (PALLAS 6563M/C) | 3088 x 2064 |
| Sensor Type (PALLAS 6563M/C) | Sony IMX178 rolling shutter CMOS |
| Resolution (PALLAS 6516M/C) | 1440 x 1080 |
| Frame Rate (PALLAS 6516M/C) | 128fps @ 1440 x 1080 |
| Resolution (PALLAS 6504M/C) | 720 x 540 |
| Frame Rate (PALLAS 6504M/C) | 444fps @ 720 x 540 |
| Resolution (PALLAS 65200M) | 5496 x 3672 |
| Frame Rate (PALLAS 65200M) | 10.7fps @ 5496 x 3672 |
| Power Supply Requirement | +12~24VDC (± 10%) |
| Operating Temperature | 0℃ ~ 45℃ |
The maximum communication rate for the RS232 serial port is 115200bps.
This indicates that the camera has entered the factory startup mode, prompting the user to upgrade the system.
A flashing green NET LED indicates that there is network data transmission occurring.
