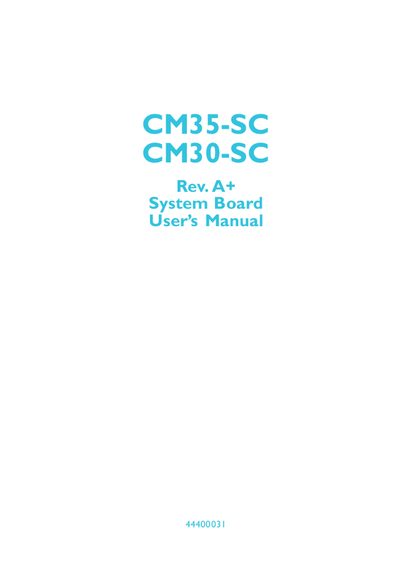

User manual for the CM35‑SC and CM30‑SC system boards covering features, installation, BIOS setup, software support and troubleshooting.
This manual provides an overview of the CM35‑SC and CM30‑SC system boards, including their key features, hardware layout, supported processors, memory types and expansion slots. It also describes the BIOS setup utility, onboard audio and video capabilities, and the various ports and connectors available on the boards.
The document includes detailed instructions for hardware installation, configuring jumpers, installing drivers, using the Suspend‑to‑RAM function, and a comprehensive troubleshooting guide with checklists for power, display, storage, and peripheral issues.
| Chipset | VIA 8604/82C686A (CM30‑SC) or VIA 8605/82C686A (CM35‑SC) |
|---|---|
| Memory Capacity | Up to 1 GB using VCM or PC SDRAM DIMMs |
| Memory Slots | Two 168‑pin DIMM sockets, supports PC‑66, PC‑100, PC‑133 SDRAM |
