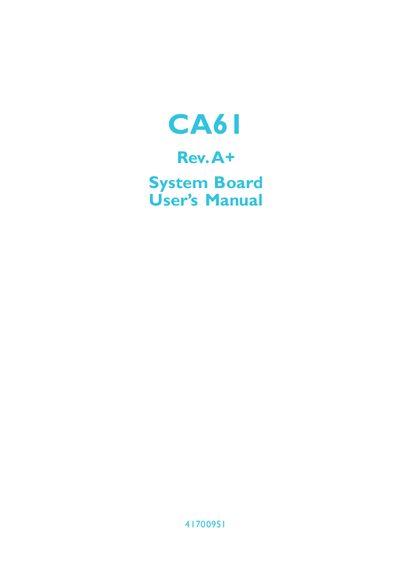

The CA61 Rev. A+ system board user manual provides installation, BIOS setup, and troubleshooting information for this ATX motherboard.
This manual introduces the CA61 Rev. A+ system board, describing its features, specifications, and package contents. It covers hardware installation, including board layout, memory installation, jumper settings, and connector descriptions.
Subsequent chapters detail the Award BIOS setup utility, supported software utilities, system health monitoring functions, and a comprehensive troubleshooting guide with checklists for common PC problems.
| Chipset | VIA 82C693A and 82C596B (PC‑133) |
|---|---|
| Processor socket | Socket 370 for Intel Celeron PPGA, Pentium III FCPGA, or future Cyrix processors |
| Core voltage range | 1.30 V to 2.05 V |
| Memory capacity | 16 MB – 768 MB using VCM, unbuffered or registered DIMM |
| Expansion slots | 1 AGP, 3 PCI, 2 ISA, 1 shared PCI/ISA |
The board supports Intel Celeron PPGA, Pentium III FCPGA, and future Cyrix processors in a Socket 370.
It can accommodate 16 MB to 768 MB of memory using VCM, unbuffered or registered DIMM modules across three 168‑pin sockets.
The board provides one AGP slot, three PCI slots, two 16‑bit ISA slots, and one shared PCI/ISA slot.
