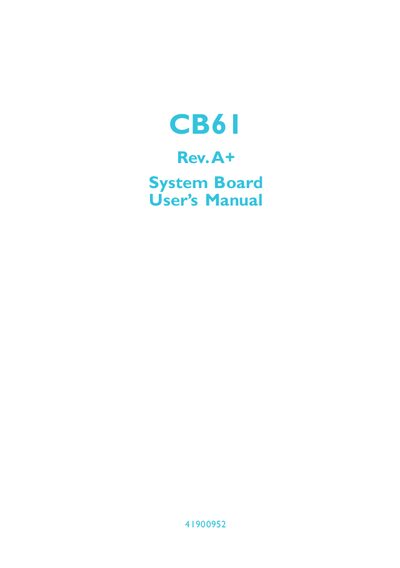

The CB61 Rev. A+ System Board User Manual provides installation, BIOS setup, specifications, and troubleshooting guidance.
This manual covers the CB61 Rev. A+ system board, detailing its features, hardware layout, memory options, expansion slots, and connector types. It includes step‑by‑step instructions for installing the board, configuring jumpers, and setting up the Award BIOS utility.
Additional sections describe supported software utilities, system health monitoring, power management features, and a comprehensive troubleshooting guide with error‑message references and diagnostic checklists.
| Chipset | Intel 440BX |
|---|---|
| CPU Socket | Socket 370 |
| Supported Processors | Intel Celeron, Pentium III, Cyrix |
| Memory Capacity | 16 MB‑384 MB unbuffered, 32 MB‑768 MB registered DIMMs |
| Expansion Slots | 1 AGP, 3 PCI, 2 ISA, 1 shared PCI/ISA |
| USB Ports | 2 |
| Core Voltage Regulator | 1.30 V – 2.05 V |
Use the jumper settings for clearing CMOS data as described in the hardware installation chapter.
The board provides one AGP slot, three PCI slots, two 16‑bit ISA slots, and one shared PCI/ISA slot.
Connect the 3‑pin Wake‑On‑LAN (WOL) connector and ensure the power supply’s 5VSB source supplies at least 720 mA.
