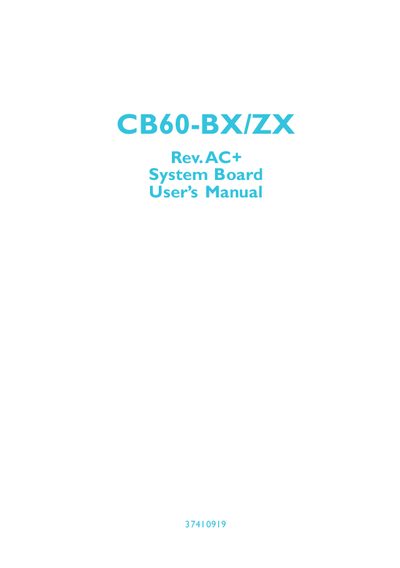

The CB60-BX/ZX system board manual provides hardware installation, BIOS setup, and troubleshooting instructions.
This manual covers the features, specifications, and installation steps for the CB60-BX/ZX system board. It includes details on the chipset, processor socket, memory configurations, expansion slots, and peripheral connectors.
The document also explains the Award BIOS setup utility, supported software utilities, system health monitoring functions, and provides a comprehensive troubleshooting checklist for common hardware issues.
| Chipset | Intel 440BX (CB60-BX) or Intel 440ZX-100 (CB60-ZX) |
|---|---|
| Processor Socket | Socket 370 for Intel Celeron PPGA processors |
| Supported Memory (CB60-BX) | 16 MB–384 MB unbuffered DIMMs, 32 MB–768 MB registered DIMMs, three 168‑pin DIMM sockets |
| Supported Memory (CB60-ZX) | 16 MB–256 MB unbuffered DIMMs, two 168‑pin DIMM sockets |
| Expansion Slots | 1 AGP, 3 PCI, 2 ISA (16‑bit), 1 shared PCI/ISA |
| 5VSB Power Requirement | ≥ 720 mA |
It supports Intel Celeron PPGA processors installed in a Socket 370.
The board includes two USB ports.
The 5VSB rail must be able to supply at least 720 mA.
It provides one AGP slot, three PCI slots, two 16‑bit ISA slots, and one shared PCI/ISA slot.
