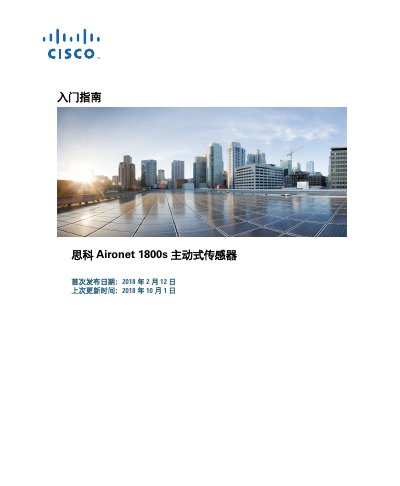

This manual provides installation and configuration instructions for the Cisco Aironet 1800s Active Sensor, covering setup, power options, and troubleshooting.
This guide introduces the Cisco Aironet 1800s Active Sensor, a wireless sensor used for wireless service assurance solutions. It covers the initial setup, including unpacking, identifying ports and connectors, and various installation options such as wall mounting or using specific power modules like PoE or USB adapters.
The document details the configuration process for the wireless service assurance solution, including software upgrades via Cisco DNA Center and license ordering. It also provides comprehensive information on troubleshooting, status LED indicators, and reset procedures to help users manage and maintain the device effectively. This manual is written in Chinese.
The peak antenna gain is approximately 3 dBi for the 2.4 GHz band and 5 dBi for the 5 GHz band.
The protection device rating must not exceed 20A.
The USB port requires a 5V 1.5A power source.
