The Cisco Catalyst 6513-E chassis is a modular switch that provides up to 2 Tbps of system bandwidth capacity and has a durable rear fan tray for enhanced cable management. The chassis has 13 slots and provides high port density for multiple wiring closets, distribution, and network core areas as well as data center deployments.
The Cisco Catalyst 6513‑E enhanced chassis is part of the Catalyst 6500 series and offers up to 2 Tbps system bandwidth with 13 modular slots, each delivering 80 Gbps. It supports multiple supervisor engines and provides flexible power options, high‑density 10/100/1000 Mbps and 10 Gbps Ethernet ports, and advanced redundancy features.

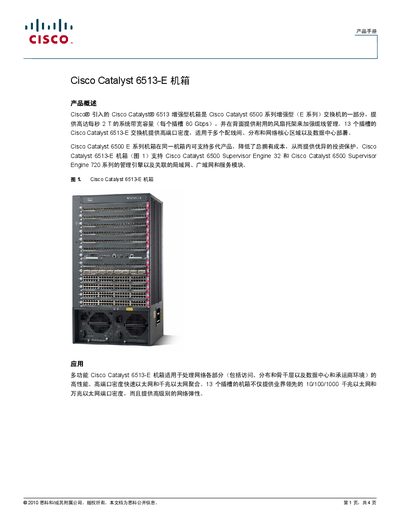

The guide includes detailed product specifications, industry and safety standards compliance, environmental operating limits, and ordering part numbers for chassis, fan brackets, and compatible power supplies. This manual is written in Chinese.
| Number of slots | 13 |
|---|---|
| System bandwidth capacity | 2 Tbps |
| Per‑slot bandwidth | 80 Gbps |
| Weight (chassis only) | 79.1 lb (35.9 kg) |
| Operating temperature range | 32 °F to 104 °F (0 °C to 40 °C) |
| Storage temperature range | -40 °F to 167 °F (-40 °C to 75 °C) |
| Relative humidity | 5 % to 95 % non‑condensing |
| Altitude range | -500 ft to 6500 ft (-150 m to 1981 m) |
The chassis provides up to 2 Tbps of system bandwidth.
It has 13 modular slots.
It supports AC power supplies of 3000 W, 4000 W, 6000 W and 8700 W, and DC power supplies of 2500 W, 4000 W and 6000 W.
