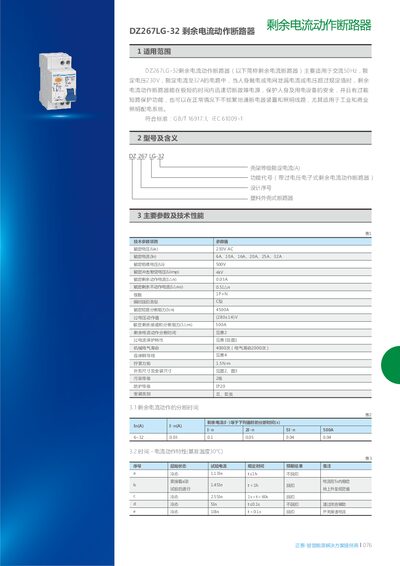

The Chint DZ267LG-32 residual current circuit breaker manual provides technical specifications, installation dimensions, ordering details, and usage…
The DZ267LG-32 residual current circuit breaker is designed for 50 Hz AC circuits with a rated voltage of 230 V and rated currents up to 32 A. It quickly disconnects fault power when leakage current or voltage exceeds set limits, protecting personnel and equipment, and also offers overload and short‑circuit protection for lighting and power distribution systems.
The document includes detailed technical parameters, time‑current characteristics, installation dimensions (TH35‑7.5 rail), environmental limits, wiring instructions with a required torque of 1.5 N·m, and ordering information such as model naming and quantity examples. This manual is written in Chinese.
| Installation method | TH35‑7.5 rail |
|---|
It can operate from –5 °C to +40 °C, with a 24‑hour average not exceeding 35 °C.
