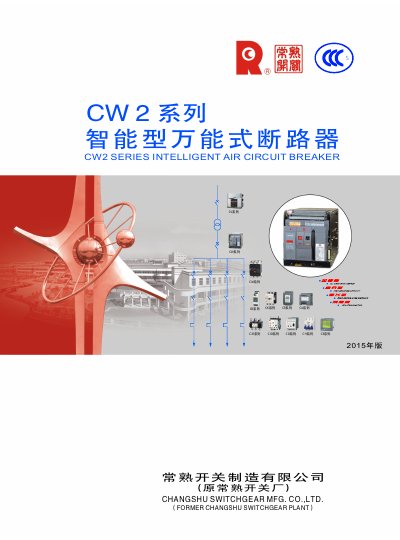

The manual details specifications, wiring diagrams, installation dimensions, intelligent controller functions and ordering information for Changshu…
The CW2 series intelligent universal circuit breakers are designed for 50 Hz/60 Hz distribution networks with rated voltages of 400 V, 690 V and AC 1000 V, and rated currents up to 6300 A. They provide high‑breaking capacity, zero‑arc operation, isolation functions and optional intelligent controllers for overload, short‑circuit, under‑voltage and ground‑fault protection.
This document includes model definitions, structural overviews, main technical indices, intelligent controller options, accessory lists, copper‑bar specifications, automatic power‑supply switching system details, physical dimensions, wiring diagrams, safety clearances, electrical schematics and ordering specifications. This manual is written in Chinese.
| Rated ultimate short‑circuit breaking capacity (Icu) | 400 V: 50‑120 kA; 690 V: 40‑85 kA; 1000 V: 36‑50 kA |
|---|---|
| Rated operating short‑circuit breaking capacity (Ics) | 400 V: 50‑120 kA; 690 V: 25‑85 kA; 1000 V: 36‑50 kA |
| Rated short‑time withstand current (Icw, 0.5 s) | 400 V: 42‑100 kA; 690 V: 25‑85 kA; 1000 V: 36‑50 kA |
| Rated working voltage | 400 V, 690 V, AC 1000 V |
| Rated current | Up to 6300 A |
The CW2 series supports Modbus‑RTU, Profibus, DeviceNet, CAN bus and Ethernet via the CN1DP and CN1EG adapters.
It provides instantaneous or timed under‑voltage release with adjustable delay times from 0.5 s to 10 s, used for PV grid‑connected applications.
The breakers are offered in three‑pole (3P) and four‑pole (4P) versions.
Yes, versions are available for temperatures down to –40 °C, suitable for humid‑tropical (TH) conditions.
