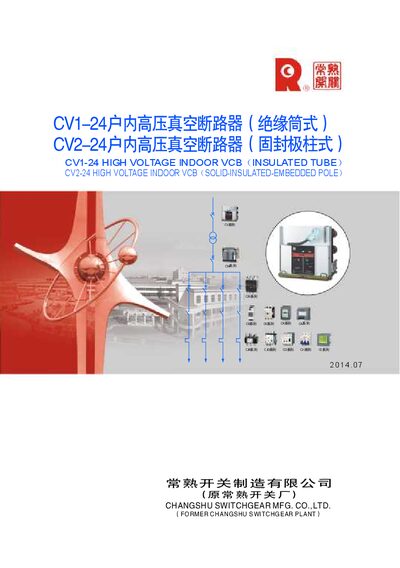

Technical specification manual for Changshu Switchgear CV1-24 and CV2-24 indoor high‑voltage vacuum circuit breakers, covering features, ratings, dimensions…
The CV1-24 (insulated‑tube type) and CV2-24 (solid‑insulated‑embedded pole type) are indoor high‑voltage vacuum circuit breakers designed for 24 kV AC networks in industrial plants and substations. They provide reliable control and protection, supporting both fixed and withdrawable (hand‑car) configurations.
The manual lists the rated voltage, current, short‑circuit breaking capacity, environmental limits, dimensions, mounting details and optional accessories such as charging motors and shunt release devices. It also references the applicable national and IEC standards. This manual is written in Chinese.
| Rated Voltage | 24 kV |
|---|---|
| Rated Current | 630 A ~ 3150 A |
| Rated Short‑Circuit Breaking Current | 25 kA ~ 40 kA |
| Power‑Frequency Withstand Voltage (1 min) | 65 kV |
| Lightning Impulse Withstand Voltage (peak) | 125 kV |
| Operating Frequency | 50 Hz |
The rated voltage is 24 kV.
Yes, both fixed and withdrawable types can be installed in KYN28 A‑24 cabinets.
