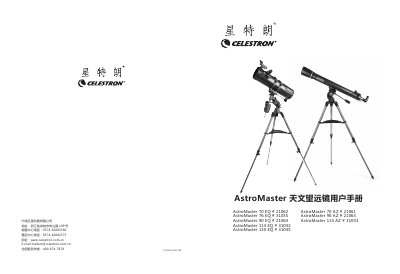

This manual covers assembly, usage, maintenance, and astronomical basics for the Celestron AstroMaster EQ and AZ series telescopes.
This user manual provides instructions for the Celestron AstroMaster series of amateur astronomy telescopes. It covers two main mount types: German Equatorial Mounts (CG-2 and CG-3) for models with 70mm, 76mm, 90mm, 114mm, and 130mm apertures, and Alt-Azimuth mounts for the 70mm, 90mm, and 114mm models. The guide includes detailed assembly steps for tripods and mount components. This manual is written in Chinese.
The tripod legs can be extended to a minimum height of approximately 60 centimeters and a maximum height of approximately 100 centimeters.
The 90EQ and 130EQ models include two counterweights of 5.0# (2.3kg), while the 70EQ, 76EQ, and 114EQ models include counterweights of either 2.0 pounds (0.9 kg) or 2.6 pounds (1.2 kg).
Users are warned never to look directly at the sun with the naked eye or through the telescope, as this can cause permanent and irreversible damage to the eyes.
