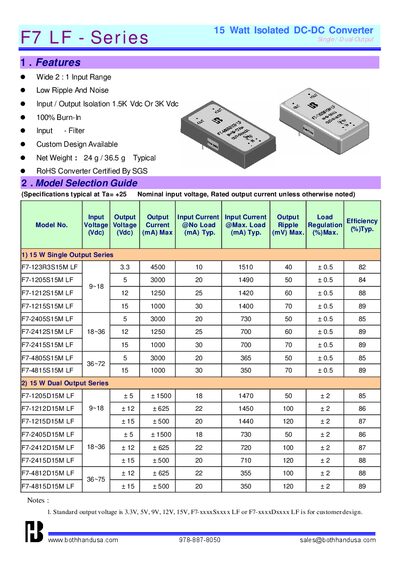

The Bothhand F7 LF Series 15 W isolated DC‑DC converter datasheet provides specifications, dimensions, ordering info and performance data for single and…
The F7 LF Series offers 15 W isolated DC‑DC conversion with a wide 2:1 input range, low ripple, high isolation (1.5 kVdc or 3 kVdc) and optional custom designs. Both plastic and metal case options are available for single‑output (S) or dual‑output (D) configurations.
The datasheet lists electrical specifications, absolute maximum ratings, efficiency curves, mechanical dimensions and ordering details. Model suffixes indicate case material, output type and isolation voltage, helping users select the correct part for their application.
| Isolation Voltage | 1.5 kVdc (single) / 3 kVdc (dual) |
|---|---|
| Switching Frequency | 300 kHz |
| Net Weight | 24 g (plastic) / 36.5 g (metal) |
The series provides either 1.5 kVdc or 3 kVdc isolation depending on the model suffix.
