Data sheet for Bothhand 20PT1024X LF 10/100 BASE‑TX LAN magnetics for Auto MDI/MDIX applications.
The 20PT1024X LF LAN magnetics from Bothhand provide 10/100 BASE‑TX Ethernet connectivity with automatic MDI/MDIX detection. The device is designed for use in networking equipment that requires reliable Ethernet link performance.

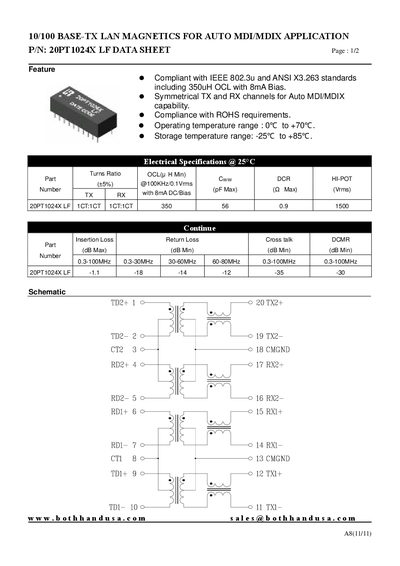

Key features include compliance with IEEE 802.3u and ANSI X3.263 standards, symmetrical TX/RX channels for auto‑MDI/MDIX, ROHS compliance, and a wide operating temperature range. Electrical specifications such as turns ratio, insertion loss, return loss, crosstalk and dielectric breakdown are listed in the sheet, along with a schematic diagram and contact information.
It complies with IEEE 802.3u and ANSI X3.263 standards.
Yes, it provides symmetrical TX and RX channels for Auto MDI/MDIX capability.
Yes, the magnetics meet ROHS requirements.
