10/100 BASE PULSE TRANSFORMERS (SMD) SMALL SIZE is a high performance power transformer produced by BOTHHAND USA company. It has low leakage inductance and winding capacitance, which meets the requirements of fast rise time; high isolation voltage, which meets international safety requirements; half port and single port design, which maximizes wiring flexibility; compatible with Intel, TDK, QSI and ICS transceivers; 16 PIN SMD package, which complies with IEEE 802.3 standard; storage temperature range is -40℃ to +125℃; operating temperature range is 0℃ to +70℃.

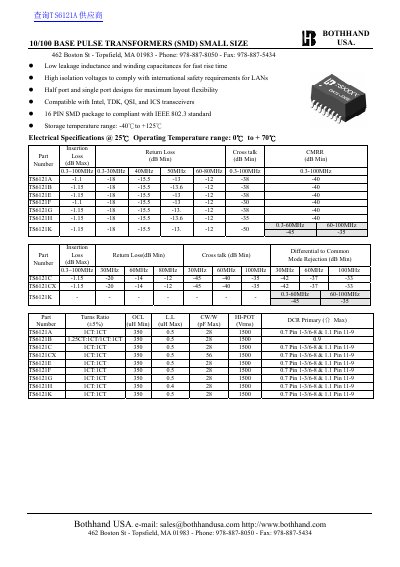

This document is a datasheet for the Bothhand TS6121 series of 10/100 Base pulse transformers designed in a small SMD package. The components are intended for use in LANs and are compatible with Intel, TDK, QSI, and ICS transceivers. They feature low leakage inductance and winding capacitances to ensure fast rise times, along with half port and single port designs for layout flexibility.
| Operating Temperature Range | 0°C to +70°C |
|---|---|
| Storage Temperature Range | -40°C to +125°C |
| Package Type | 16 PIN SMD |
| Compatible Transceivers | Intel, TDK, QSI, and ICS |
| Insertion Loss (0.3~100MHz) | Max 1.15 dB |
| Return Loss (0.3-30MHz) | Min -18 dB |
| DCR Primary (2 Max) | 0.7 Ohm |
| HI-POT | 1500 Vrms |
The electrical specifications are rated at 25°C, and the operating temperature range is from 0°C to +70°.
These transformers are compatible with Intel, TDK, QSI, and ICS transceivers.
