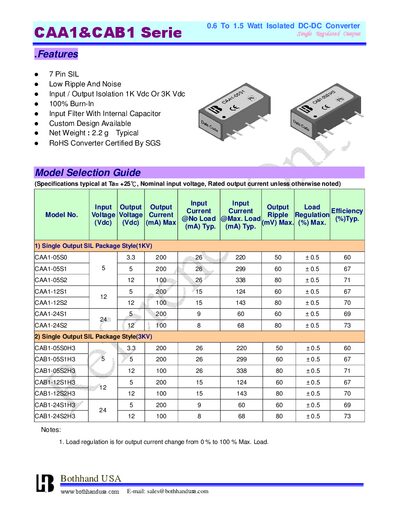

Technical data sheet for Bothhand CAA1&CAB1 Series isolated DC‑DC converters covering specifications, dimensions and performance.
The Bothhand CAA1&CAB1 Series provides isolated DC‑DC conversion from 0.6 W to 1.5 W with single‑output SIL packages. Models are available with 1 kV or 3 kV isolation and feature low ripple, input filtering, and optional custom designs.
Key electrical parameters include input voltages of 5 V, 12 V and 24 V, output voltages of 200 V, and efficiencies up to 73 %. Mechanical dimensions are listed for each package style, and the converters meet RoHS and SGS certification requirements.
| Input Voltage (5 V model) | 4.75 V – 5.25 V |
|---|---|
| Input Voltage (12 V model) | 11.4 V – 12.6 V |
| Input Voltage (24 V model) | 22.8 V – 25.2 V |
| Isolation Voltage | 1 kV / 3 kV |
The series offers 1 kV isolation for the SIL package style and 3 kV isolation for the higher‑voltage style.
