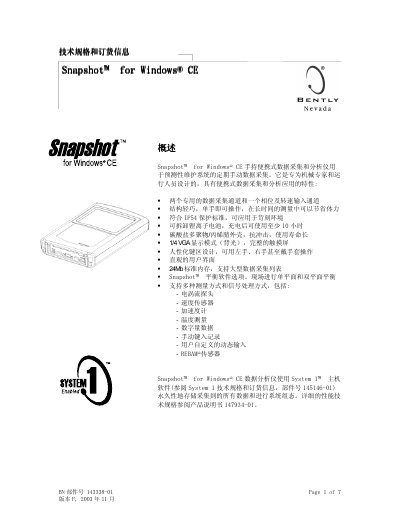

The Bently Nevada Snapshot for Windows CE datasheet provides technical specifications, environmental limits, supported sensors, and ordering options for the…
Snapshot for Windows CE is a portable handheld data acquisition and analysis instrument designed for predictive maintenance. It features two dedicated data acquisition channels, a phase and speed input, a rugged IP54‑rated housing, detachable lithium‑ion battery, VGA display, and a full‑touch screen.
The datasheet lists the device's operating system, memory, battery life, frequency capabilities, environmental specifications, supported sensor types, physical dimensions, connector types, and detailed ordering information for accessories and component kits.
| Operating System | Microsoft Windows CE |
|---|---|
| Battery Life | At least 10 hours |
| Battery Type | Lithium‑ion |
| Memory | 24 Mb |
| Frequency Resolution Options | 100, 200, 400, 800, 1600, 3200, 6400 lines |
| Frequency Range | 0‑25 Hz or 0‑40 kHz selectable |
| Operating Temperature | -20 °C to +55 °C |
| Relative Humidity | < 95 % non‑condensing |
| Protection Rating | IP54 |
| Physical Dimensions (L×W×D) | 250 mm × 163 mm × 60 mm |
It runs Microsoft Windows CE.
The battery provides at least 10 hours of operation.
The instrument is rated IP54 for dust and water protection.
