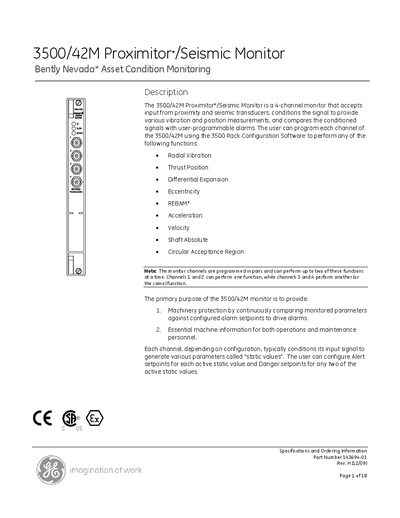

Technical specifications and ordering information for the Bently Nevada 3500/42M Proximitor/Seismic Monitor.
The 3500/42M Proximitor/Seismic Monitor is a four‑channel condition‑monitoring module that accepts proximity and seismic transducer inputs. It provides vibration, position and other static measurements, with programmable alarm setpoints for machinery protection and operational insight.
The document lists detailed electrical characteristics, environmental limits, physical dimensions, and ordering options for I/O modules, barrier modules, cables and accessories. It also includes frequency‑response data, alarm configuration guidelines, and certification information for various safety agencies.
| Input Impedance | 10 kΩ (Proximitor and Acceleration Inputs) |
|---|---|
| Power Consumption | 7.7 Watts (typical) |
| Radial Vibration Sensitivity | 3.94 mV/µm (100 mV/mil) |
| Update Rate | ≤ 100 ms |
| Dimensions (monitor module) | 241.3 mm × 24.4 mm × 241.8 mm |
| Weight (monitor module) | 0.91 kg (2.0 lb) |
| Operating Temperature (with internal termination I/O) | -30 °C to +65 °C |
It is a four‑channel monitor that can accept inputs from up to four proximity, velocity or acceleration transducers.
The monitor typically consumes 7.7 W.
Measurements are updated at 100 ms or faster.
