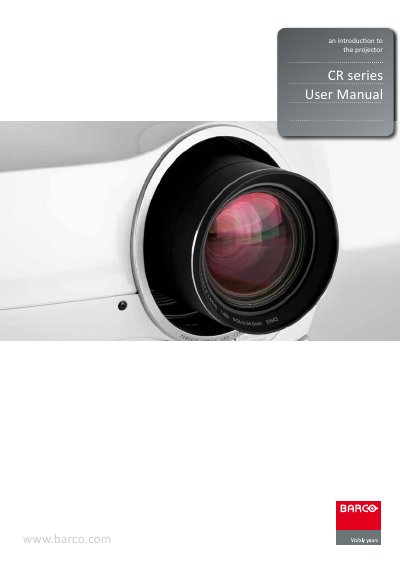

The Barco CR Series projector user manual provides setup, operation, safety, and maintenance instructions for CRPN‑52B, CRPN‑62B, CRWQ‑62B and CRWQ‑72B models.
This manual introduces the Barco CR Series projectors, covering safety warnings, unpacking, and an overview of the hardware, indicators, remote control, and connectivity options. Detailed sections guide users through basic setup such as lens installation, image alignment, lamp operation, and ceiling mounting, as well as advanced features like remote control ID (RCID) control of multiple units, dual‑lamp management, and custom colour space configuration.
Further chapters describe picture optimisation, calibration, maintenance procedures including lamp replacement and software upgrades, and provide full technical specifications. Safety instructions emphasize proper grounding, lamp handling, and environmental precautions, while the appendix lists regulatory compliance and warranty information.
| Resolution | WQXGA (2560 × 1600) or Panorama (2560 × 1080) |
|---|---|
| Dimensions (W × H × D) | 376 × 510 × 223 mm |
| Weight | ≈12.6 kg |
| Power Consumption (UHP lamp) | < 1050 W |
| Power Consumption (LED) | < 325 W |
| Operating Temperature | 0 – 40 °C (32 – 104 °F) |
| Lamp Life (UHP) | 2000 h full power / 2500 h eco (auto‑switch up to 5000 h) |
| LED Lamp Life | up to 100 000 h |
Multiple projectors can be linked using the remote control ID (RCID) feature, allowing a single remote to control several units simultaneously.
