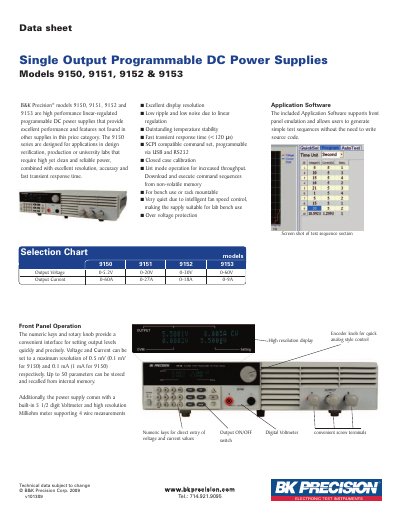

Technical specifications and features for the B&K Precision 9150 series linear-regulated programmable DC power supplies, including models 9150 through 9153.
The B&K Precision 9150 series consists of high-performance linear-regulated programmable DC power supplies designed for design verification, production, and university lab applications. The series includes models 9150, 9151, 9152, and 9153, each offering different output voltage and current ratings ranging from 0-5.2V/60A to 0-60V/9A.
| Output Voltage Range | 0-5.2V, 0-20V, 0-30V, 0-60V |
|---|---|
| Output Current Range | 0-60A, 0-27A, 0-18A, 0-9A |
| Load Regulation | <0.01% + 0.5 mV to <0.1% + 10 mA |
| Line Regulation | <0.02% + 0.1 mV to <0.1% + 1 mA |
| Transient Response | <120 µs |
| Weight | 63.9 lbs, (29 kg) |
| Dimensions | 16.88 in (W) x 3.47 in (H) x 18.06 in (D) |
| Warranty | Two Year Warranty |
The power supplies feature a fast transient response time of less than 120 µs.
Supplied accessories include a user manual, line cord, RS232 and USB communication cables, and application software installation disk.
