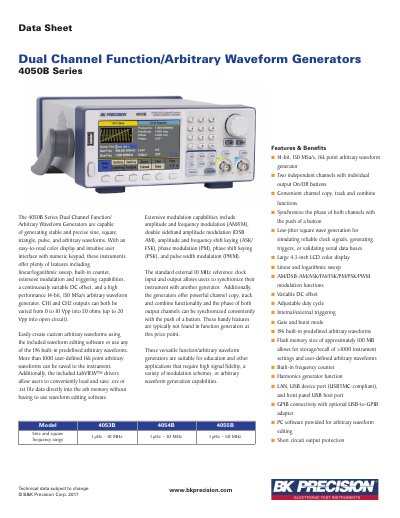

Technical data sheet for the B&K Precision 4050B Series Dual Channel Function/Arbitrary Waveform Generators, covering specifications, features, and…
The B&K Precision 4050B Series consists of three models (4053B, 4054B, and 4055B) designed as dual-channel function and arbitrary waveform generators. These instruments feature a 14-bit resolution and a sampling rate of 150 MSa/s, capable of generating sine, square, triangle, pulse, and arbitrary waveforms. They include extensive modulation capabilities such as AM, FM, PM, ASK, FSK, and PWM, along with built-in frequency counters and harmonic generators.
| Resolution | 14-bit |
|---|---|
| Sampling Rate | 150 MSa/s |
| Waveform Length | 16k points |
| Built-in Waveforms | 196 |
| Memory Storage | >1000 waveforms |
| Amplitude Range (into 50 Ω) | 2 mVpp – 10 Vpp |
| Frequency Range (Sine & Square) | 1 µHz – 10 MHz (4053B) |
| Total Harmonic Distortion (Sine) | < 0.075% |
| Rise/Fall Time (Square) | < 4.2 ns |
| Power Consumption | 50 W max. |
The 4053B covers 1 µHz – 10 MHz, the 4054B covers 1 µHz – 30 MHz, and the 4055B covers 1 µHz – 60 MHz.
The instrument can generate pulses with a minimum pulse width of 32 ns.
There are 196 built-in predefined arbitrary waveforms available for use.
The maximum power consumption is rated at 50 W.
