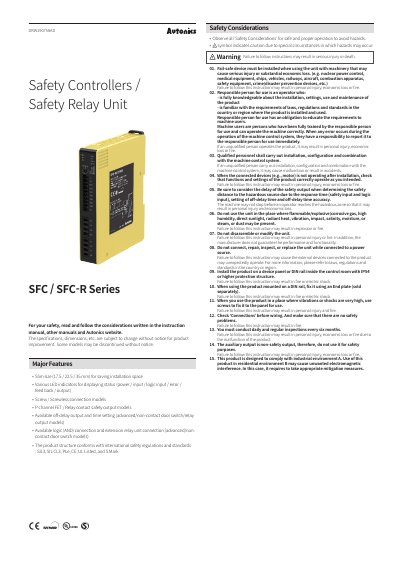

The Autonics SFC / SFC-R Series safety controller manual provides safety considerations, installation, wiring, and specifications.
This manual covers the major features and safety considerations for the Autonics SFC / SFC‑R Series safety controllers and relay units. It explains required safety precautions, responsible personnel duties, and environmental limits to ensure safe operation in industrial applications.
Detailed installation instructions are provided, including mounting on DIN rail or with bolts, wiring of power, inputs, and outputs, and configuration of setting switches. Technical specifications such as power supply, voltage range, current limits, and response times are listed for each model variant.
| Power supply | 24 VDC |
|---|---|
| Allowable voltage range | 85 to 110% of rated voltage |
| Input ON voltage | ≥ 11 VDC |
| Input time | ≥ 50 ms |
| Cable length | ≤ 100 m |
Hang the top rail lock onto the DIN rail, press the module down, and install end plates at both ends to fix the product.
Use AWG 18 (0.8 mm²) cable and tighten the terminal screw with a torque of 0.3 Nm.
This manual explains 1 error code. Open a code for its meaning, causes and what to do:
