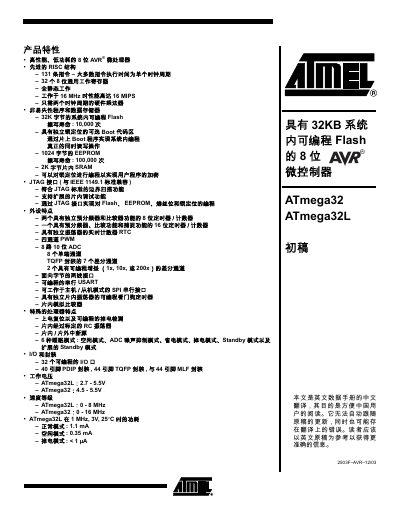

This Chinese datasheet details the features, specifications, and architecture of the Atmel ATmega32 and ATmega32L 8-bit AVR microcontrollers.
The document is a product datasheet for the ATmega32 and ATmega32L microcontrollers manufactured by Atmel. It provides comprehensive technical information including device characteristics, pin configurations, block diagrams, and internal architecture descriptions.
Key features highlighted include a high-performance RISC structure with 131 instructions, up to 32KB of system programmable Flash memory, 1024 bytes of EEPROM, and 2K bytes of SRAM. The datasheet also covers various peripherals such as timers/counter units, USART, SPI, ADC, and JTAG debugging interfaces. This manual is written in Chinese.
| Flash Memory Size | 32 KB |
|---|---|
| EEPROM Size | 1024 Bytes |
| SRAM Size | 2 K bytes |
| I/O Ports | 32 Programmable I/O pins |
| Operating Frequency (ATmega32) | 0 - 16 MHz |
| Operating Frequency (ATmega32L) | 0 - 8 MHz |
| Supply Voltage (ATmega32) | 4.5 - 5.5V |
| Supply Voltage (ATmega32L) | 2.7 - 5.5V |
The maximum operating frequency for ATmega32 is 16 MHz.
It has 32 KB of system programmable Flash memory.
