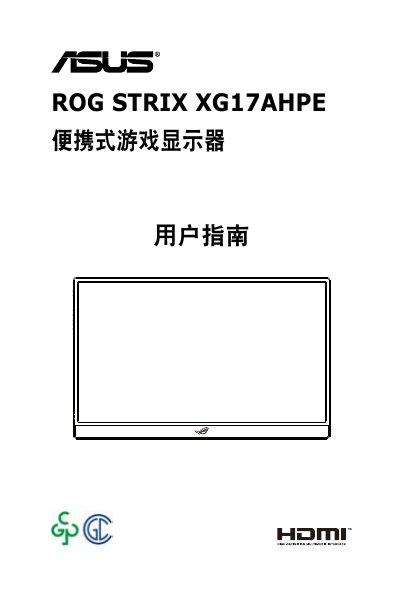

The ASUS ROG STRIX XG17AHPE portable gaming monitor user guide provides setup, safety, OSD settings, specifications, and troubleshooting.
This guide introduces the ASUS ROG STRIX XG17AHPE portable gaming monitor, covering safety precautions, cleaning, recycling, and the items included in the package. It explains how to connect the monitor via USB‑C or Micro‑HDMI, how to charge the built‑in battery, and how to position the device for optimal use.
The manual details the OSD menu functions, supported input resolutions and refresh rates, full technical specifications, and a troubleshooting section that helps resolve common issues such as power‑LED problems, brightness adjustments, and image artifacts. This manual is written in Chinese.
| Panel size | 17.3" (16:9) widescreen |
|---|---|
| Resolution | 1920 × 1080 |
| Brightness (typical) | 300 nits |
| Contrast (typical) | 1000:1 |
| Color depth | 16.7 million colors |
| Operating temperature | 0 °C ~ 40 °C |
| Net weight | ≈ 1.06 kg |
| Video inputs | DisplayPort™ Alt Mode via USB‑C, HDMI via Micro‑HDMI |
| Fast charging | QC 3.0, up to 9 V @ 2 A (18 W) |
Check that the Type‑C and HDMI ports are connected to a signal source and that the source is powered on.
Use the dedicated brightness button on the monitor to increase or decrease the brightness level.
Charge the monitor for about four hours before the first use.
The USB‑C port supports up to 1920 × 1080 at 240 Hz.
