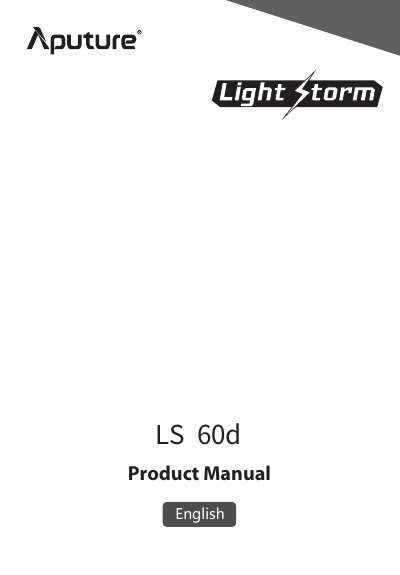

The Aputure LS 60d product manual provides safety instructions, installation steps, component details, and usage guidelines for the Light Storm LED fixture.
This manual covers the Aputure Light Storm LS 60d LED light, describing its optical design, weather‑resistant version (LS 60d/x), and the accessories that can be attached such as Bowens mount adapters, barn doors, and battery cases. It begins with important safety precautions and FCC compliance information before moving to a checklist of items included in the box.
Subsequent sections explain how to install each accessory, connect power (single or dual battery, AC input), and provide technical specifications like operating voltage, current, and maximum power. The document also contains illumination distribution data, warranty terms, and contact information for service and support.
| Working current | <6.5A |
|---|---|
| Maximum power | 80W |
| Body size (L×Ø) | ≤80 mm |
Push the pick to the front of the claw, lift the claw above the lamp cap, rotate it 90°, align the Bowens Mount Adapter with the three slots on the lamp cap, insert it from top to bottom, then rotate the socket forward.
Use a battery with a voltage between 6 V and 8.4 V, and a continuous discharge rating of at least 6.6 A.
The fixture can deliver up to 80 W of power at a color temperature of 5600 K.
