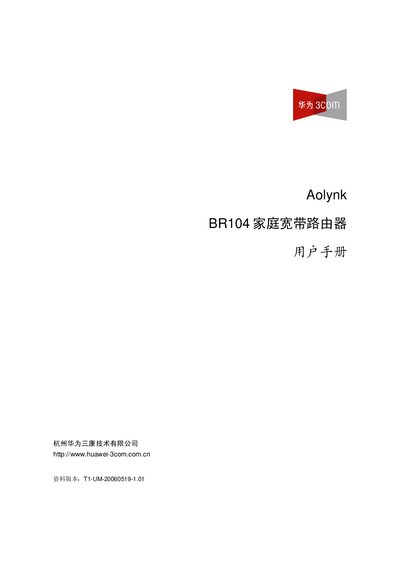

The manual provides product overview, setup steps, web configuration, advanced features and troubleshooting for the Aolynk BR104 broadband router.
The Aolynk BR104 is a broadband router designed for small‑office/home use. It includes one WAN port for Internet access and four Ethernet LAN ports for connecting computers or switches, supporting VPN, firewall, UPnP, DHCP, DNS, DDNS and other networking functions.
The document guides users through unpacking, safety precautions, hardware connections, web‑based configuration, advanced settings, network applications, troubleshooting, technical specifications and TCP/IP installation. It also includes a glossary of networking terms. This manual is written in Chinese.
| Power supply | 9V AC, 1A external |
|---|---|
| Dimensions | 150 mm × 110 mm × 34 mm |
| Weight | 230 g |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -10 °C to 70 °C |
| Operating humidity | 20 % to 85 % non‑condensing |
| Storage humidity | 10 % to 90 % non‑condensing |
The default LAN IP address is 192.168.1.1 with a subnet mask of 255.255.255.0.
The router provides four Ethernet LAN ports.
It uses an external 9 V AC, 1 A power adapter.
