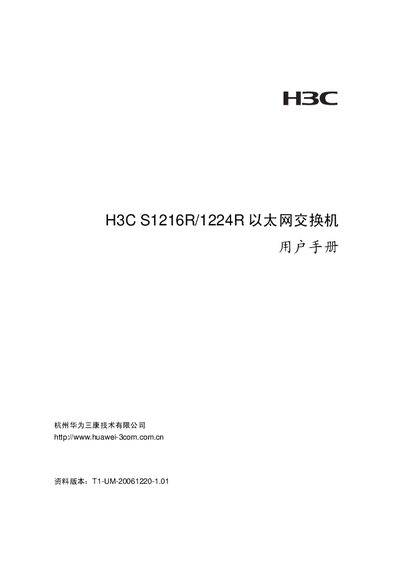

This document is the user manual for H3C S1216R/1224R Ethernet Switch, providing information about the features and characteristics of the product.
The H3C S1216R/1224R is an unmanaged Layer‑2 gigabit Ethernet switch that requires no configuration—simply power it on for line‑rate forwarding. The S1216R version offers 16 RJ‑45 ports, while the S1224R version provides 24 ports, all supporting 10/100/1000 Mbit/s auto‑negotiation.
The manual covers installation preparation, safety precautions, rack‑mount and tabletop mounting, power connection, and post‑installation checks. It also explains indicator LEDs, hardware layout, and environmental requirements such as ventilation, temperature, and humidity limits. This manual is written in Chinese.
| Dimensions (L×W×H) | 440 mm × 230 mm × 44 mm |
|---|---|
| Ports (S1216R) | 16 × 10/100/1000Base‑T RJ‑45 |
| Ports (S1224R) | 24 × 10/100/1000Base‑T RJ‑45 |
| Input Voltage | AC 100 V–240 V, 50/60 Hz |
| Power Consumption (S1216R) | 25 W |
| Operating Temperature | 0 °C–40 °C |
| Storage Temperature | -10 °C–70 °C |
| Operating Humidity | 20 %–85 % (non‑condensing) |
| Cooling Method | One internal fan |
The S1216R version provides 16 fixed 10/100/1000Base‑T Ethernet ports.
The switch operates on AC power from 100 V to 240 V at 50 or 60 Hz.
Unplug the power cord before cleaning the switch.
